LVDT-ASC

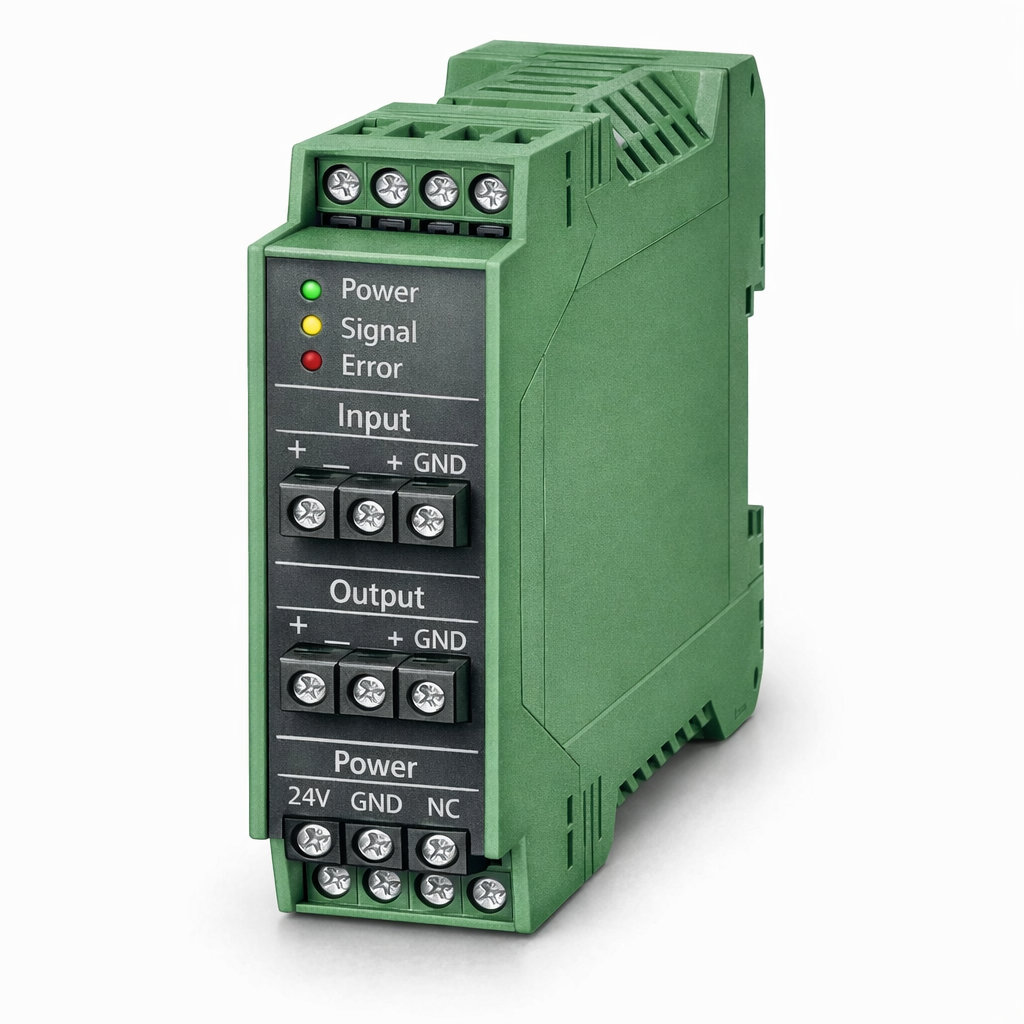

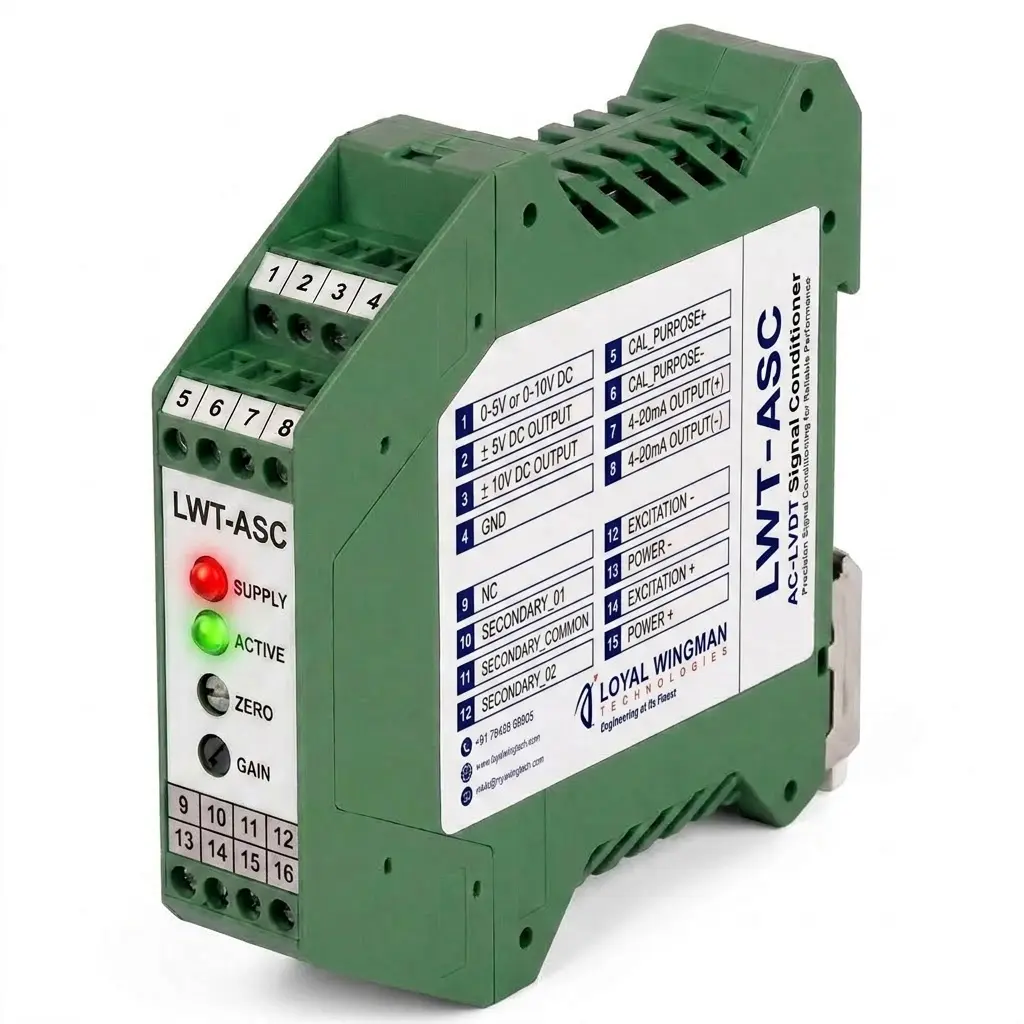

Industrial AC-LVDT Signal Conditioner
DIN-Rail Mounted Signal Conditioning Module for AC LVDT Sensors
The LVDT-ASC is a DIN-rail mounted industrial signal conditioner for AC-excited LVDT sensors. The module provides sine-wave excitation to the LVDT primary, conditions the differential secondary signal using synchronous phase-sensitive demodulation, and provides simultaneous voltage and current outputs for PLC, DAQ, control, and monitoring systems.
Key Features
- DIN-rail mounted industrial AC-LVDT signal conditioner
- Wide excitation support: 1 Vrms to 7 Vrms, up to 25 mA drive
- Selectable excitation frequencies: 2.5 / 5 / 7.5 / 10 kHz
- Simultaneous PLC/DAQ outputs: ±10 V, ±5 V, 0–10 V, 0–5 V, 4–20 mA
- 3 kV DC I/O isolation with front-panel zero & span adjustment
- UL94-V0 graded enclosure with IP20 rating
Product Identification
Model / Part Number
LVDT-ASC
Product Type
Industrial AC-LVDT Signal Conditioner
Mounting
35 mm DIN rail
Enclosure Material
PC / flame-retardant UL94-V0
Protection Rating
IP20
Electrical & Performance Specification
Input supply
24 VDC / 24 VAC
Sensor type
AC-excited LVDT
Excitation waveform
Sine wave
Excitation voltage
1 Vrms to 7 Vrms (3 Vrms nominal)
Excitation frequency
2.5 / 5 / 7.5 / 10 kHz (DIP selectable)
Voltage outputs
±10 V, ±5 V, 0–10 V, 0–5 V
Current output
4–20 mA
Output availability
All outputs available simultaneously
Voltage output load
≥ 2 kΩ
Current output load
≤ 500 Ω
Overall accuracy
≤ ±0.15% FS
Mounting
35 mm DIN rail
Dimension
114.5 × 99 × 22.6 mm
Enclosure material
PC / flame-retardant UL94-V0
Flammability rating
UL94-V0
Compliance Targets
IEC 61010-1
Safety requirements
IEC 61326-1
EMC requirements
IEC 60529
IP20 enclosure target
IEC 60715
35 mm DIN-rail mounting
IEC 60068-2-6
Vibration test
IEC 60068-2-27
Mechanical shock test
RoHS 2011/65/EU
Restriction of hazardous substances
