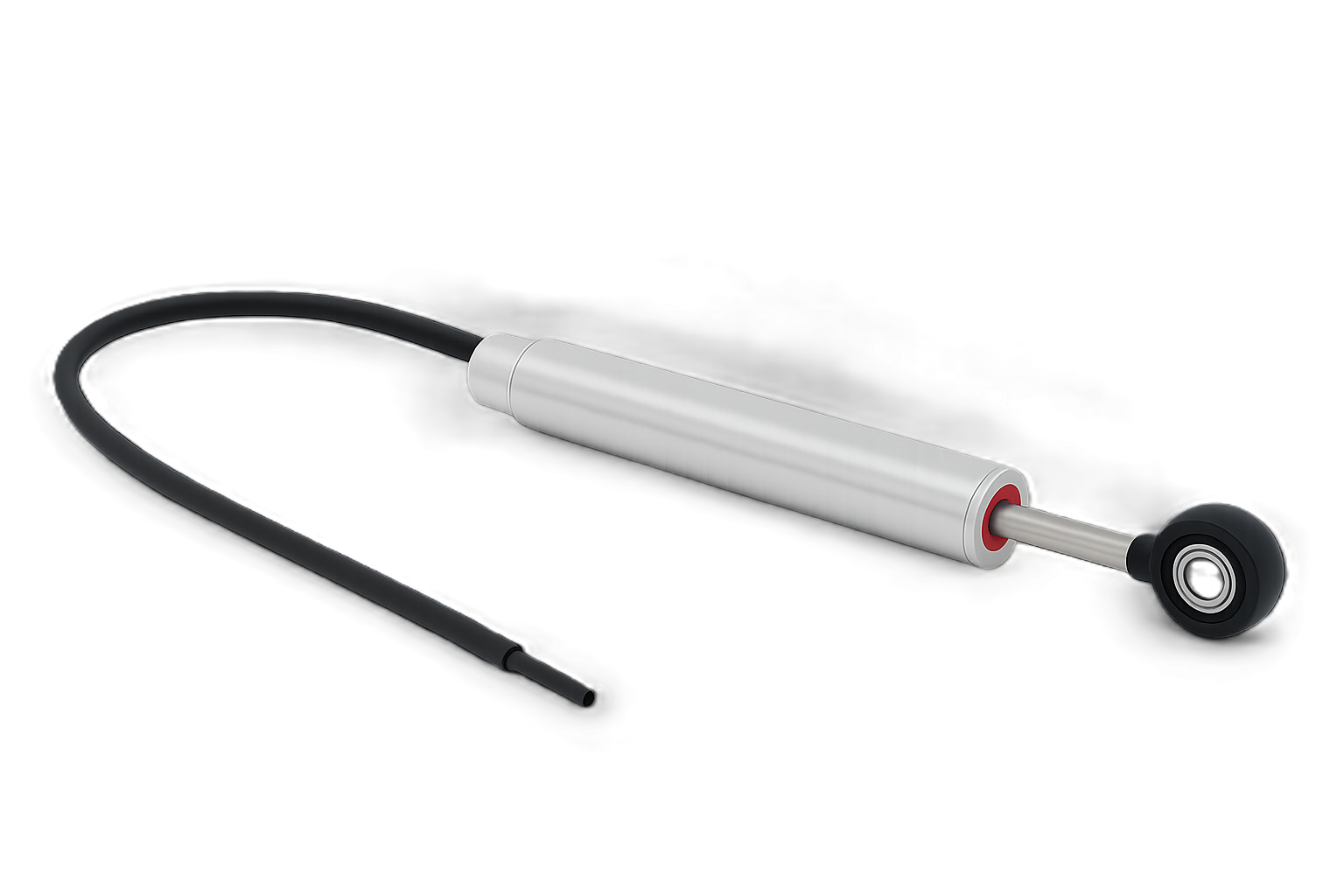

Linear Potentiometer
Precision Displacement Sensor with Signal Conditioner
High-Accuracy Linear Position Sensor with Integrated Signal Conditioning
The Linear Potentiometer is a precision displacement sensor designed to convert linear mechanical movement into a proportional electrical signal. It offers high accuracy, excellent repeatability, and reliable performance for industrial, aerospace, and automation applications.
Operating Principle
- Voltage divider principle: Linear movement of the actuator causes the wiper to traverse along a uniform resistive track
- Proportional output: Output voltage is proportional to the displacement relative to the total stroke length
- Integrated signal conditioner: Provides 4–20 mA, 0–20 mA, or 0–10 V outputs
Key Features
- Measurement stroke: 30 to 1250 mm
- High linearity: ± 0.05%
- Excellent repeatability: < 0.01 mm
- Infinite resolution for precise position feedback
- Multiple output options: 4–20 mA, 0–20 mA, 0–10 V
- Long mechanical life: 100 million cycles
- High durability: Anodized aluminium housing, stainless steel rod
- IP65 protection for harsh environments
- Wide operating temperature: -20°C to +80°C
Technical Specifications
| # | Description | Parameters |
|---|---|---|
| 1 | Measurement stroke | 30 to 1250 mm |
| 2 | Linearity | ± 0.05 % |
| 3 | Repeatability | < 0.01 mm |
| 4 | Resolution | Infinite |
| 5 | Output | 4–20 mA, 0–20 mA or 0–10 V |
| 6 | Permissible applied voltage | 15 – 30 VDC |
| 7 | Electrical connections | 4-pin connector |
| 8 | Displacement speed | < 5 m/s |
| 9 | Mechanical life | 100 million cycles |
| 10 | Case dimensions | 33 mm x 33 mm |
| 11 | Case material | Anodized aluminium |
| 12 | Rod diameter | Ø6 mm |
| 13 | Rod material | Stainless steel |
| 14 | Mechanical fixing | Variable brackets |
| 15 | IP degree | IP 65 |
| 16 | Operating temperature | -20 °C ... +80 °C |
| 17 | Storage temperature | -30 °C ... +90 °C |
| 18 | Connector | 4-pin connector |
