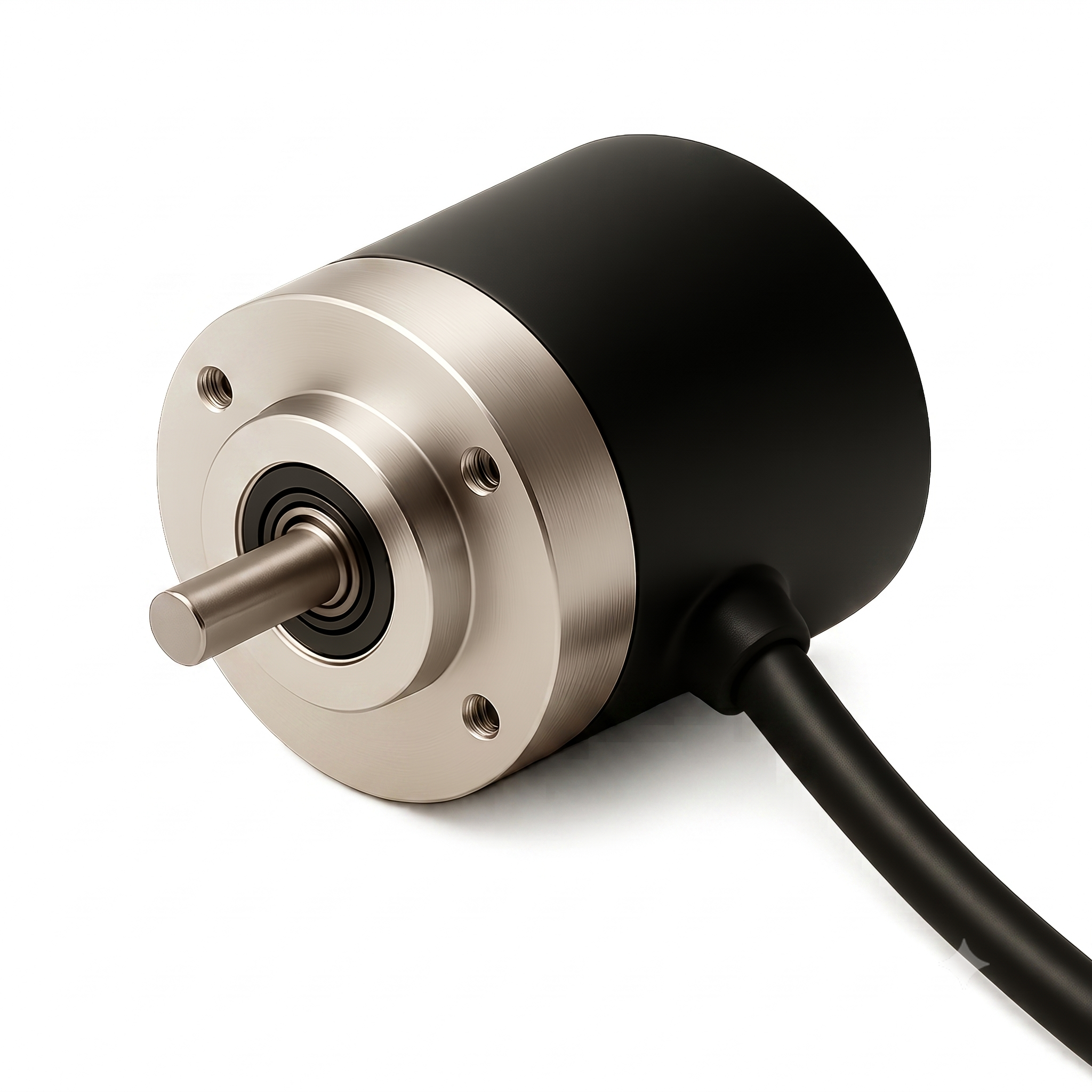

Rotary Encoder
Optical Rotary Incremental Encoder
High-Resolution Angular Position Sensor
The Rotary Encoder is an electromechanical position sensor that converts angular shaft rotation into corresponding electrical signals. It provides accurate and repeatable feedback for position, direction, and speed measurement in industrial and motion control applications.
Operating Principle
- Pulse generation: Generates electrical pulses in response to shaft rotation
- Optical or magnetic sensing: Output signals produced using optical or magnetic sensing elements
- Incremental position data: Position and speed derived based on encoder type
Key Features
- Resolution: 100 to 5000 ppr
- Output channels: A, B, Z or Ā, B̄, Z̄
- Multiple output types: Push-pull, TTL Linedriver, HTL Linedriver
- Flexible supply voltage: 5 VDC or 8–24 VDC or 5–24 VDC
- Low power consumption: < 40 mA (24 VDC)
- High speed: 3,500 rpm max
- Durable construction: Aluminium and painted steel case
- IP54 protection for industrial environments
- Wide operating temperature: -20°C to +80°C
Technical Specifications
| # | Description | Parameters |
|---|---|---|
| 1 | Resolution | 100 to 5000 ppr |
| 2 | Output channels | A, B, Z or Ā, B̄, Z̄ |
| 3 | Output type | Push-pull, TTL Linedriver, HTL Linedriver |
| 4 | Supply voltage | 5 VDC or 8–24 VDC or 5–24 VDC |
| 5 | Power consumption (without load) | < 40 mA (24 VDC) |
| 6 | Cable | 2.5 m (standard), 5-wire + shield (push-pull) / 8-wire + shield (Linedriver) |
| 7 | Max. permissible shaft loading, radial | 100 N, 60 N |
| 8 | Max. speed | 3,500 rpm |
| 9 | Shaft diameter | Ø6 – 8 mm |
| 10 | Shaft material | Stainless steel |
| 11 | Case diameter | Ø50 mm |
| 12 | Case material | Aluminium and painted steel |
| 13 | IP degree | IP 54 |
| 14 | Operating temperature | -20 °C ... +80 °C |
| 15 | Storage temperature | -30 °C ... +90 °C |
